Special perforation
70 patterns where the
holes make the design
A uniform perforation covers the panel evenly. A special perforation draws with the holes: rays worked out from a center, a bordered field, a diamond reserved out of a solid ground. Every pattern here is held as standard with its own number.
Range summary
What is held
as standard
70
Numbered patterns
56 perforated, and 14 with no holes at all: those are pressed into the panel face rather than punched through.
9
Panel sizes
300×300400×400300×600500×500600×600300×1200600×1200600×18001200×1200
11
Hole options
φ1.8φ2φ2.3φ2.5φ3φ6□1.8×12.5□4×4□5×10□5×30□5×5
Sizes and hole diameters are in millimeters, as the catalog states them. Which patterns can be run on a given panel depends on the panel size and its edge detail, so confirm a pattern with us before it goes into a specification.
The library
All 70 patterns
Radial
101
φ32 panel sizes
Radial
102
φ32 panel sizes
Radial
103
φ32 panel sizes
All-over
105
φ3, φ2.36 panel sizes
Geometric
106
φ33 panel sizes
Radial
107
φ32 panel sizes
Radial
108
φ32 panel sizes
Radial
109
φ32 panel sizes
Framed
110
φ3, φ1.81 panel size
Geometric
111
φ32 panel sizes
Framed
112
φ31 panel size
Geometric
114
φ33 panel sizes
Geometric
115
φ21 panel size
Geometric
116
φ32 panel sizes
Embossed relief
117
Embossed relief4 panel sizes
Embossed relief
118
Embossed relief1 panel size
Geometric
119
φ33 panel sizes
Geometric
120
φ3, φ1.83 panel sizes
Framed
121
φ31 panel size
Framed
122
φ31 panel size
Embossed relief
123
Embossed relief9 panel sizes
Framed
124
φ2.51 panel size
Framed
128
φ2.51 panel size
All-over
129
φ1.87 panel sizes
Framed
130
Embossed relief1 panel size
Geometric
131
φ33 panel sizes
All-over
133
φ1.84 panel sizes
Geometric
134
φ33 panel sizes
Geometric
135
φ33 panel sizes
Geometric
137
φ33 panel sizes
Framed
138
φ2.51 panel size
All-over
139
φ1.84 panel sizes
Radial
141
φ31 panel size
Radial
142
φ31 panel size
Geometric
146
φ3, φ1.83 panel sizes
Geometric
147
φ33 panel sizes
Geometric
149
φ33 panel sizes
Geometric
152
φ31 panel size
Geometric
153
φ31 panel size
Geometric
155
φ31 panel size
Framed
157
φ31 panel size
Geometric
159
φ32 panel sizes
Geometric
160
φ33 panel sizes
Geometric
161
φ31 panel size
Geometric
163
φ33 panel sizes
Geometric
164
φ33 panel sizes
Geometric
165
φ33 panel sizes
Framed
167
Embossed relief
Embossed relief
168
Embossed relief1 panel size
Embossed relief
169
Embossed relief1 panel size
Embossed relief
170
Embossed relief1 panel size
All-over
171
φ1.81 panel size
Framed
172
Embossed relief1 panel size
All-over
173
□5×101 panel size
Framed
174
Embossed relief1 panel size
All-over
175
□4×4, □5×51 panel size
Embossed relief
176
Embossed relief1 panel size
Embossed relief
177
Embossed relief1 panel size
Embossed relief
178
Embossed relief1 panel size
All-over
179
φ1.81 panel size
Framed
180
Embossed relief1 panel size
All-over
181
φ61 panel size
All-over
182
□5×301 panel size
All-over
183
□1.8×12.51 panel size
All-over
184
φ1.81 panel size
Pressed panel

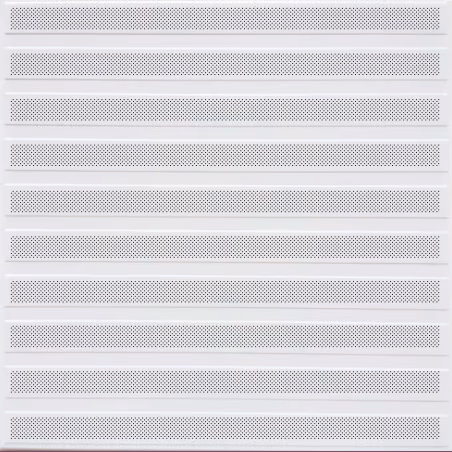

190
φ1.8, φ2.3, φ31 panel size
Pressed panel

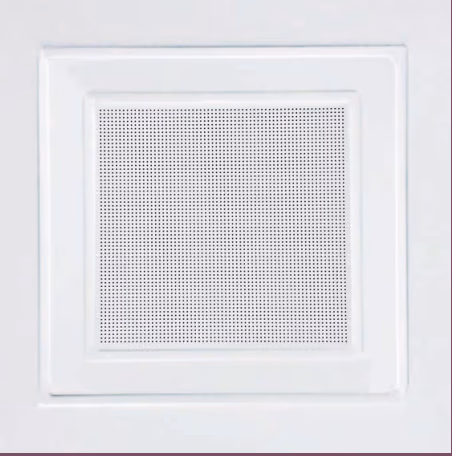

191
φ1.8, φ2.3, φ31 panel size
Pressed panel

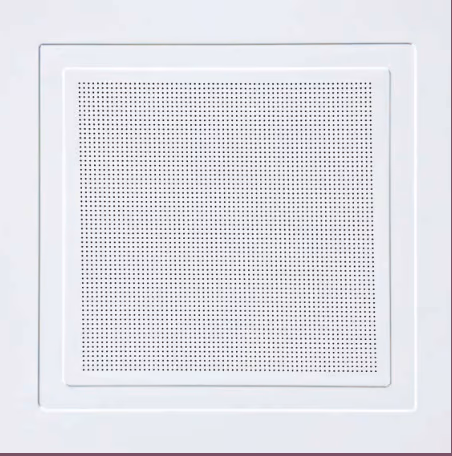

192
φ1.8, φ2.3, φ31 panel size
Pressed panel

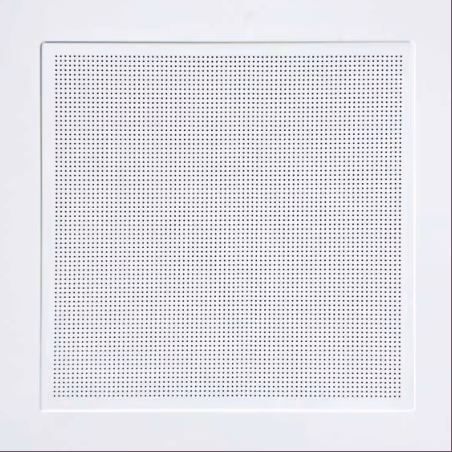

193
φ1.8, φ2.3, φ31 panel size
Pressed panel

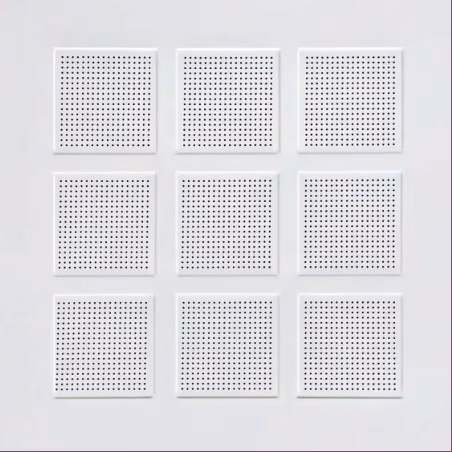

194
φ1.8, φ2.3, φ31 panel size
How they are grouped
Grouped by what
the design does
The catalog groups these only by page. Sorting them into 6 kinds by what the pattern actually does makes 70 patterns something you can choose from rather than scroll through. Each kind has a page of its own: what it is, what it does on a ceiling and where it suits.
Radial
Rays and rosettes worked out from a center point.
8 patterns
Geometric
Diamonds, crosses and quartered fields built from straight edges.
23 patterns
Framed
A perforated border around a solid center, or the reverse.
13 patterns
All-over
The pattern runs edge to edge with no reserved solid area.
12 patterns
Embossed relief
Pressed into the panel face rather than punched through. No hole diameter is given for these.
9 patterns
Pressed panel
A relief pressed into the panel and then perforated within it. The catalog prints each of these twice, once perforated and once plain.
5 patterns
Uniform perforation
The uniform range is 16 patterns that cover the panel evenly, from 7.8% to 33.3% open area. That is the set to work from when the acoustic figure matters more than the face pattern.
