The clip-in system carries its panels on concealed spring tee runners, so the finished ceiling reads as one continuous plane with no visible grid. Each panel still lifts out by hand for plenum access.
Key features

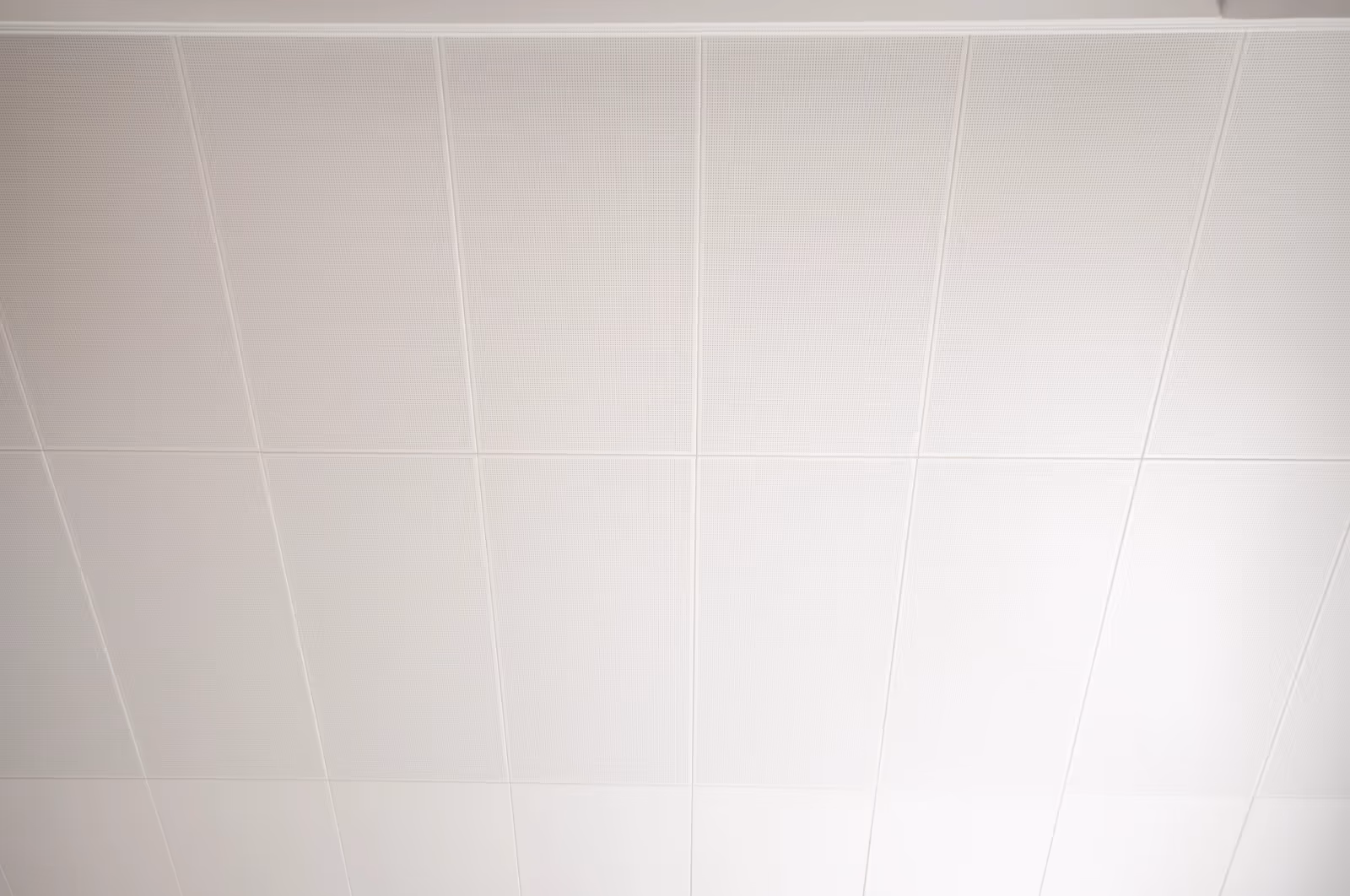

- Clean, monolithic look
- Strong acoustic performance (NRC 0.75 per ASTM C423)
- Fire-rated, Class A per ASTM E84
- High light reflection
- Light-weight panel
- Exceptional durability: corrosion resistant, humidity resistant, water repellent, mold resistant, heat resistant and stain resistant
- Easy installation and maintenance
- Easy to clean and disinfect
- Simple plenum access
Applications
Offices, clean rooms, laboratories, hospitals, retail stores and classrooms.
Specifications
- Material
- Aluminum
- Panel sizes (in)
- 23 5/8 × 23 5/8
- 23 5/8 × 47 1/4
- 23 5/8 × 70 7/8
- Style

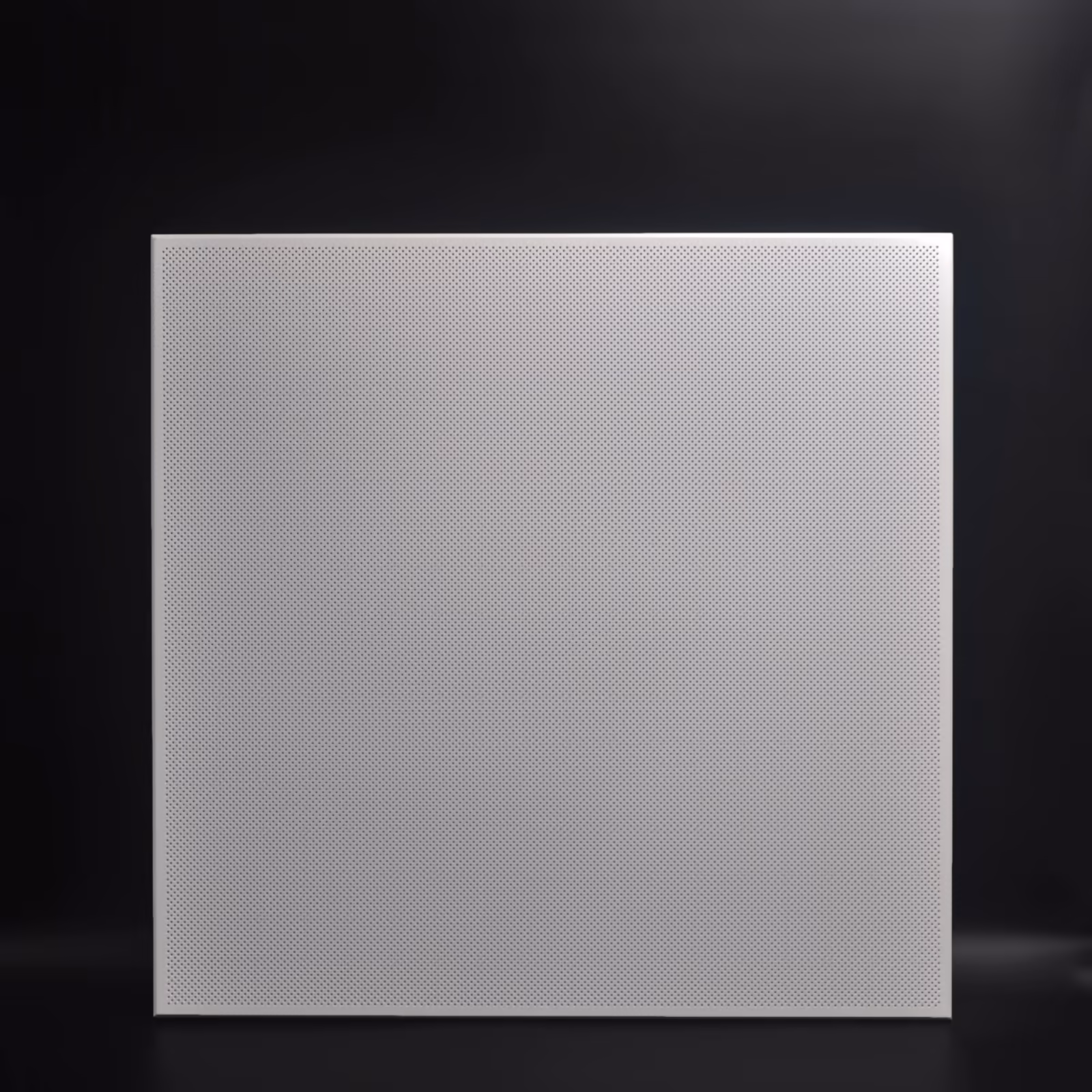

- Plain or perforated
- Finishes
- Polyester Powder Coating
- Pre-painted (wood or silver)
- PVDF
- PVC Film
Colors & finishes
82 finishes
available on this system
Powder coat, pre-painted coil, PVDF and laminated film. Every swatch links through to its own page, with the codes to put in a specification.
White
Light Skyblue
White
- On baffle ceilings, pre-painted is available on the cold-rolled series only.
- On baffle ceilings, PVC film is available on the cold-rolled series only.
Product video
Product information
video
An introduction to clip in ceiling, covering panel sizes, typical applications and how the system is installed.
Project photos
7 installations
in our showroom
Clip In Ceiling as installed, from our showroom lookbook. Click any photo to view it full size. Each one lists the grid it is mounted on where we have that detail.
Components
Related accessories
The carriers, brackets and fixings the clip in ceiling system is installed with. All are supplied by Talent and quoted with the ceiling.
Carriers & Runners
Spring Tee Runner
Galvanized iron
Brackets & Hangers
Spring Tee Runner Suspension Bracket
Connectors
Connector
Fixings
Expansion Screw
Fixings
Suspension Bolt
Brackets & Hangers
38# Main Carrier Suspension Bracket
Carriers & Runners
38 Main Carrier
Connectors
38# Main Carrier Connector
Trim & Seals
L-shaped Angle
Every part above has its own page showing which other systems take it. Browse the full accessory library.
Technical support
Specification support for clip in ceiling
Send us the ceiling area, the performance requirement and the finish you have in mind, and our team will come back with the panel schedule and pricing.
