Cold-rolled aluminum coil, sheet and cut plate produced on our own casting and rolling lines, supplied mill finish or coated to the same finish range as the ceiling systems.
Specifications
- Material
- Aluminum alloys 1050, 1060, 1070, 1145, 1200, 1235, 3A21, 3105, 8011, 3003
- Status
- O
- H18
- H24
- H26
- H14
- H16
- Finishes
- Mill finish / Pre-painted / PVDF / PVC Film
- Style
- Plain or perforated
Aluminum Coil
- Thickness
- 0.14 – 4 mm
- Width
- 1300 mm max
- Coil inner diameter
- 510 mm
- Coil external diameter
- 1700 mm
- Weight
- About 2 – 2.2 ton per coil

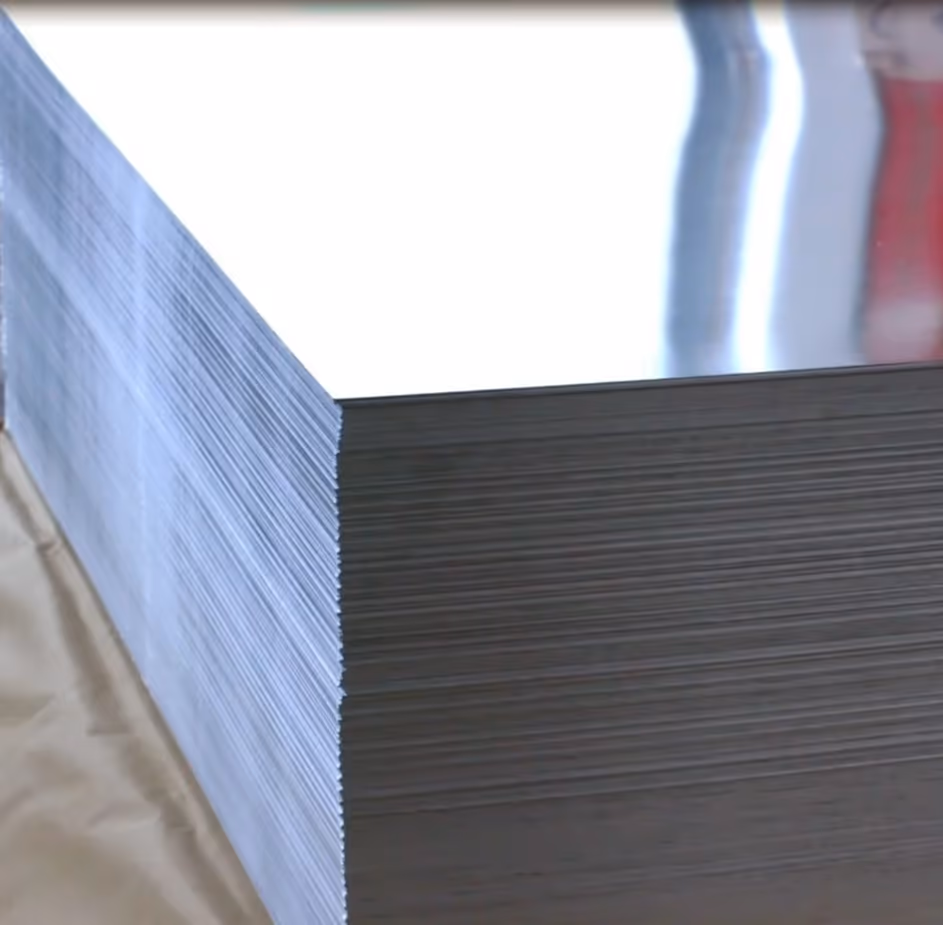

Aluminum Sheet
- Thickness
- 0.14 – 4.0 mm
- Width
- 1000 mm – 3000 mm
- Length
- 1000 mm – 4000 mm
Cut Aluminum Sheet
- Thickness
- 6 – 34 gauge, 0.063 – 0.157 in
- Typical sizes (ft)
- 1×1
- 1×2
- 1×4
- 2×2
- 2×4
- 4×4
- 4×8
Colors & finishes
82 finishes
available on this system
Powder coat, pre-painted coil, PVDF and laminated film. Every swatch links through to its own page, with the codes to put in a specification.
White
Light Skyblue
White
- On baffle ceilings, pre-painted is available on the cold-rolled series only.
- On baffle ceilings, PVC film is available on the cold-rolled series only.
Technical support
Specification support for aluminum coil & sheet
Send us the ceiling area, the performance requirement and the finish you have in mind, and our team will come back with the panel schedule and pricing.
