Clip In Ceiling
Seamless suspended ceiling system
View productExplore other ceiling systems
View all products
Clip In CeilingSeamless suspended ceiling system
Lay In CeilingSuspended ceiling system with Tees
Baffle CeilingCold-rolled and extruded baffles
Strip CeilingLinear suspended ceiling system
Open Cell CeilingOpen grid suspended ceiling
Hook On CeilingExtra-sturdy seamless suspended ceiling
Combination CeilingClip-in ceiling system with mixed panels
01/03
The open cell ceiling is formed by fitting the cross carrier perpendicularly onto the main carrier. It can be installed continuously with only the carriers, or laid onto a Talent® suspension grid. Open cell is designed for airflow and smoke extraction, which makes it well suited to retail and public space with high foot traffic.
Specifications
- Materials
- Aluminum
- Cell sizes (in)
- 2×2
- 3×3
- 4×4
- 5×5
- 6×6
- 8×8
- 10×10
- Installation
- Standalone ceiling, or laid onto exposed tee grid
- Performance
- Fire performance
- Improved airflow
- Smoke extraction
- Width (in)
- 0.4
- 0.6
- 0.8
- Height (in)
- 1.6
- 2
- 2.4
- Length (ft)
- Up to 6.5
- Finishes
- Polyester Powder Coating
- Pre-painted
- PVDF
- PVC Film
Colors & finishes
82 finishes
available on this system
Powder coat, pre-painted coil, PVDF and laminated film. Every swatch links through to its own page, with the codes to put in a specification.
White
Light Skyblue
White
- On baffle ceilings, pre-painted is available on the cold-rolled series only.
- On baffle ceilings, PVC film is available on the cold-rolled series only.
Product video
Product information
video
An introduction to open cell ceiling, covering panel sizes, typical applications and how the system is installed.
Project photos
2 installations
in our showroom

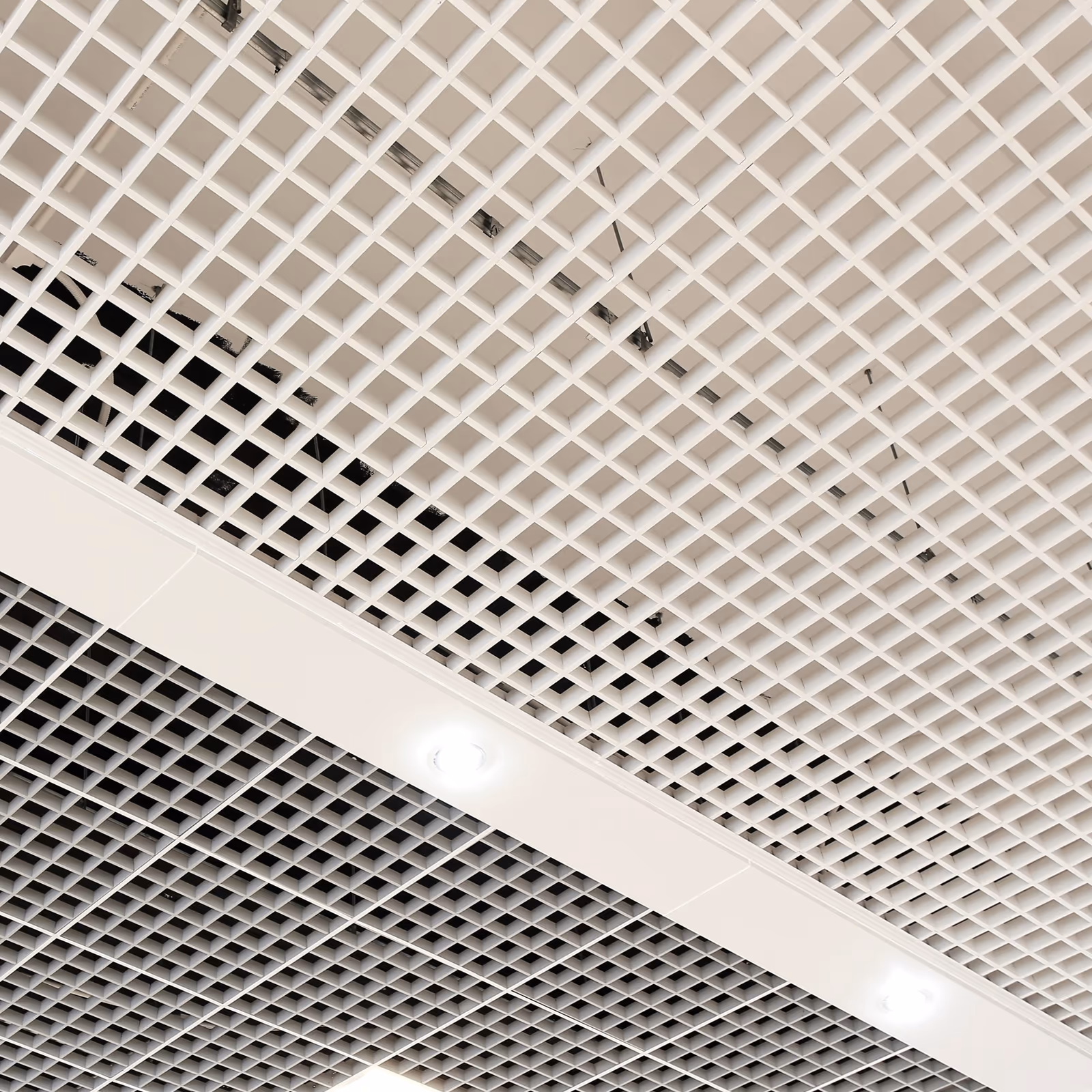

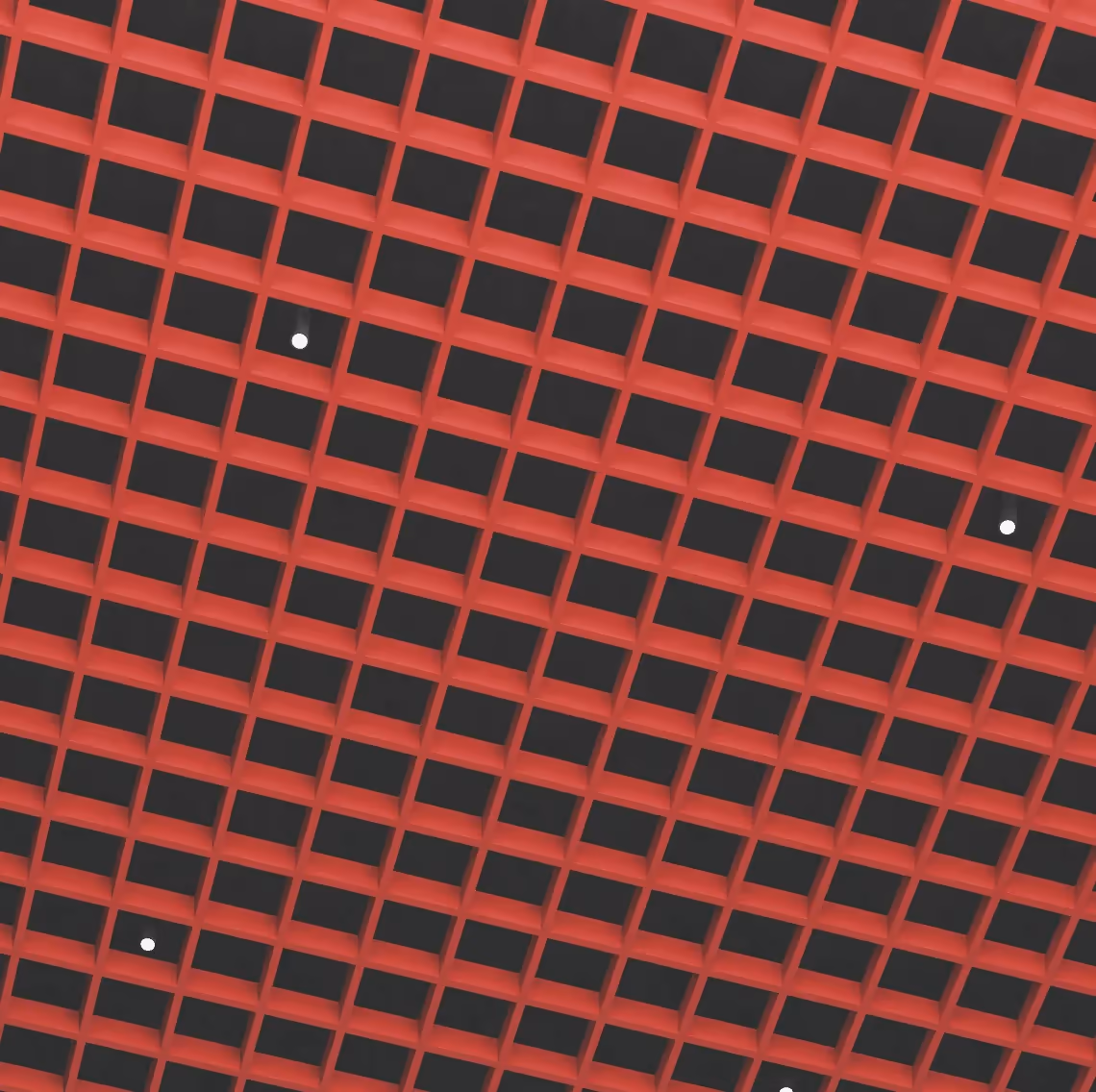

Open Cell Ceiling as installed, from our showroom lookbook. Click any photo to view it full size. Each one lists the grid it is mounted on where we have that detail.
Components
Related accessories
The carriers, brackets and fixings the open cell ceiling system is installed with. All are supplied by Talent and quoted with the ceiling.
Carriers & Runners
Open Cell Carrier
Shape depends on panel type
Fixings
Expansion Screw
Fixings
Suspension Bolt
Brackets & Hangers
38# Main Carrier Suspension Bracket
Carriers & Runners
38 Main Carrier
Connectors
38# Main Carrier Connector
Trim & Seals
L-shaped Angle
Every part above has its own page showing which other systems take it. Browse the full accessory library.
Technical support
Specification support for open cell ceiling
Send us the ceiling area, the performance requirement and the finish you have in mind, and our team will come back with the panel schedule and pricing.
