Suspension Systems

Exposed Tee Grid

Suspension system for acoustical ceilings

Request a Quote Download specs

Explore other products

View all products

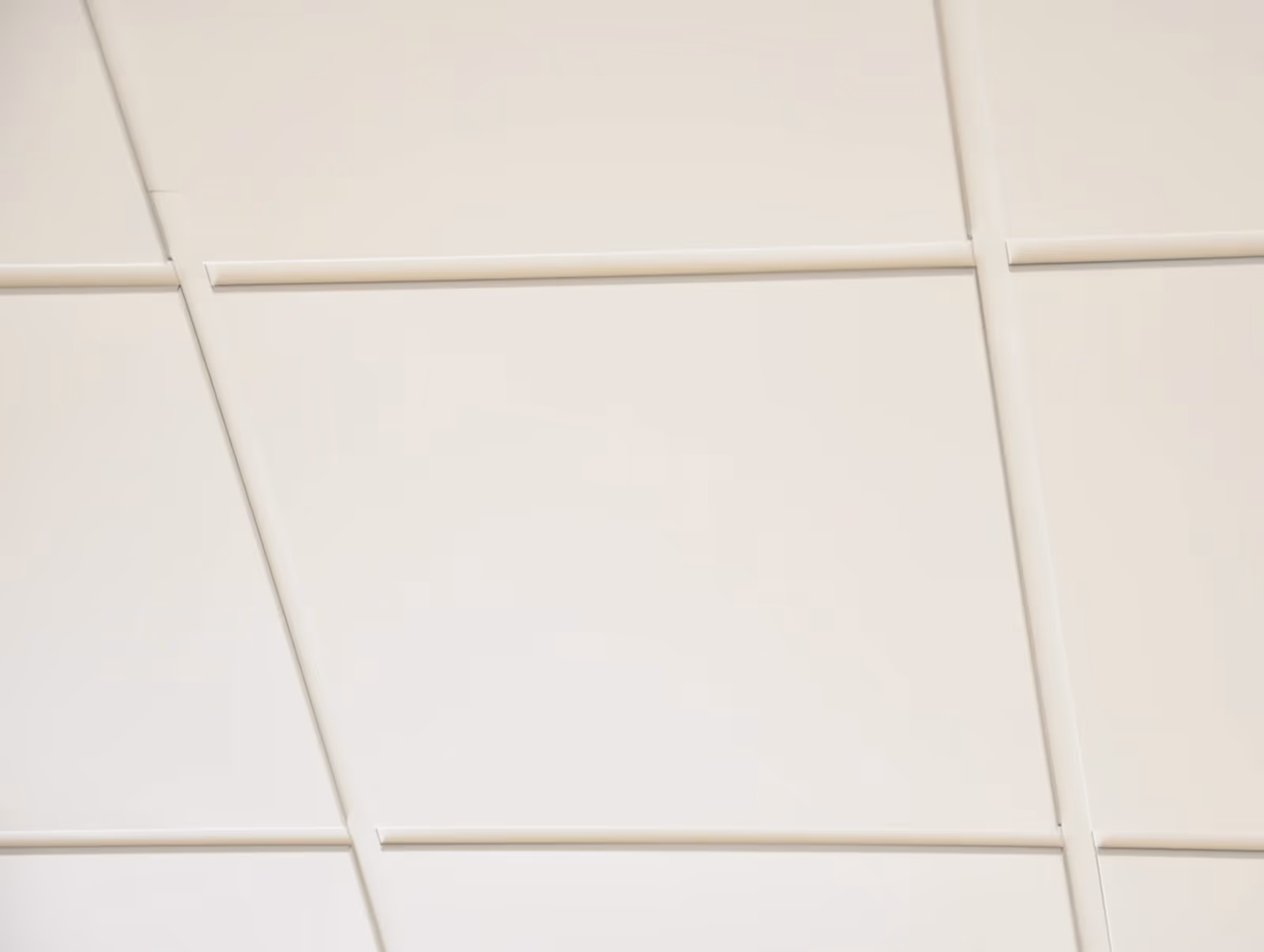

Exposed tee grid carrying white lay-in panels across an office ceiling

01/06

A hot-dipped galvanized steel suspension system in 9/16″ and 15/16″ exposed tee, in flat and groove profiles. It carries Talent™ lay-in and open cell ceilings as well as third-party panels including mineral fiber.

Key features

  • 9/16″ and 15/16″ exposed tee systems

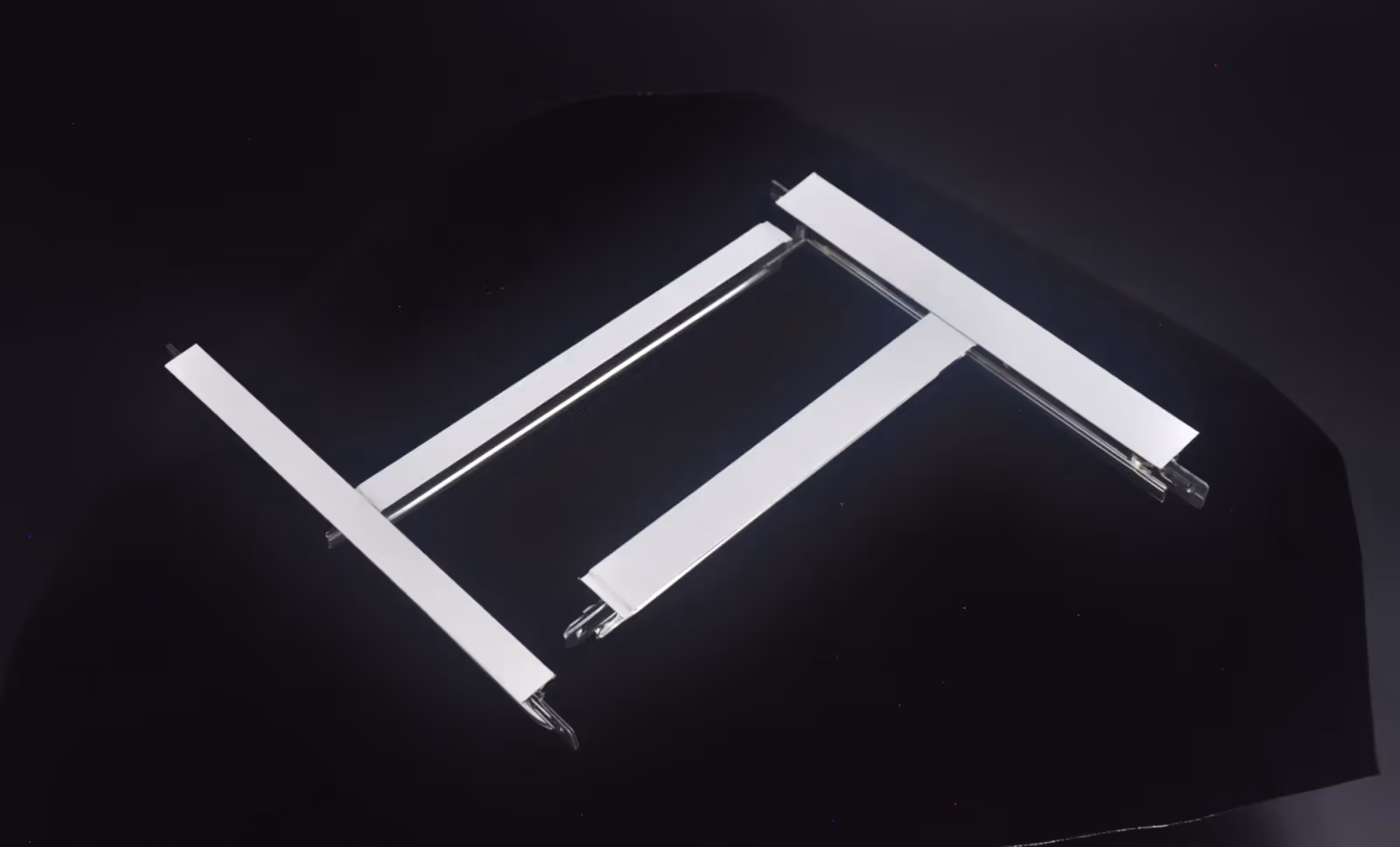

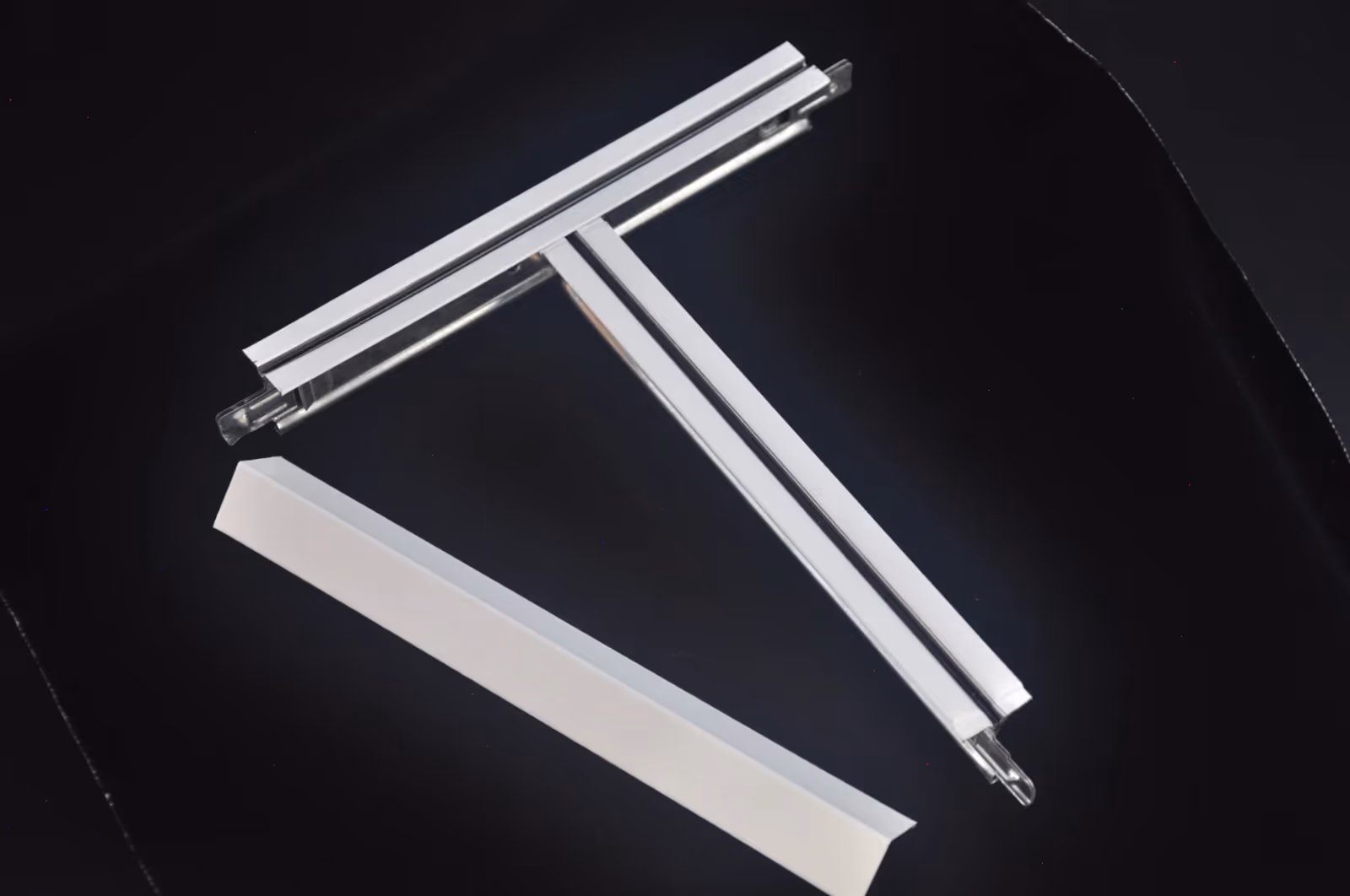

  • Flat tee and groove tee
  • Custom color available
  • Compatible with Talent™ lay-in ceiling, Talent™ open cell ceiling and other ceilings including mineral fiber

Specifications

Material
Hot-dipped galvanized steel body
Size
9/16″ and 15/16″
Main tee
15/16″ × 1.5″ × 12′
Cross tee
  • 15/16″ × 1.5″ × 4′ or 15/16″ × 1.1″ × 4′
  • 15/16″ × 1.5″ × 2′ or 15/16″ × 1.1″ × 2′
Wall angle
15/16″ × 15/16″ × 12′
Finish
  • Baked-on polyester paint (white and black)
  • Polyester Powder Coating (silver or other custom color)

Colors & finishes

11 finishes
available on this system

Powder coat, pre-painted coil, PVDF and laminated film. Every swatch links through to its own page, with the codes to put in a specification.

White
Light Grey
Grey
Black
Lake Blue
Light Skyblue
Pink Violet
Violet
Aston Green
Alfa Red
Custom Color finish
Custom Color
See all 11 finishes Color card

Technical support

Specification support for exposed tee grid

Send us the ceiling area, the performance requirement and the finish you have in mind, and our team will come back with the panel schedule and pricing.
