Strip ceiling profile · Open, with gap
C85-Shaped Strip Ceiling
A narrow 3.3 inch board that can be run with a 0.6 inch gap or closed up with a C15 infill strip. One profile, two very different ceilings.

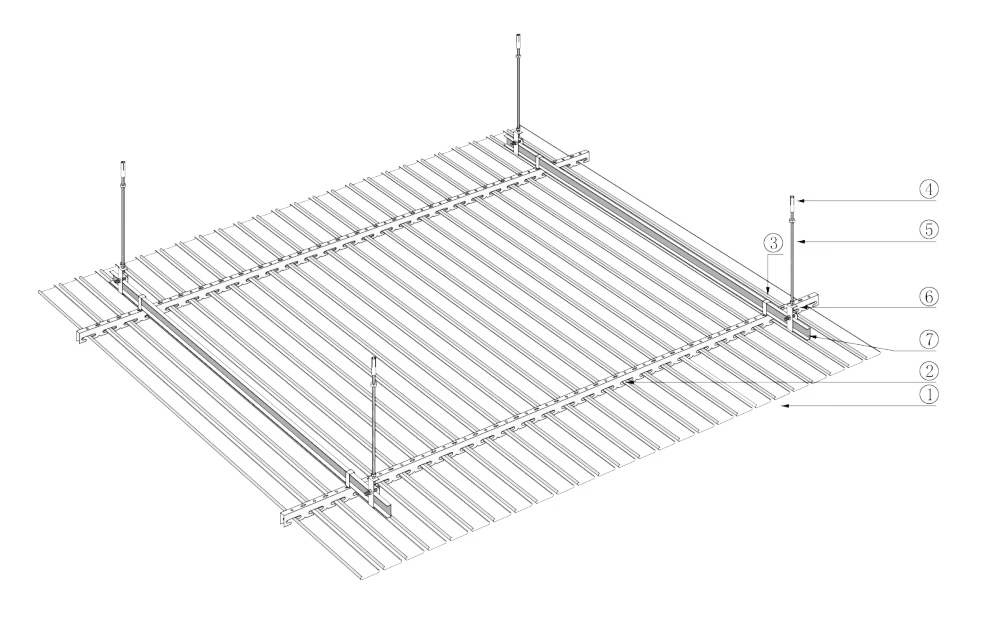

Technical drawing
The assembly, with each callout numbered against the component list below. Parts we hold in the accessory library link through to their own pages.
Components
- C85-Shaped Ceiling Panel
- Horizontal Carrier
Hanger
Expansion Screw (6 or 8mm)
Suspension Bolt and Nuts (6 or 8mm)
38# Main Carrier Suspension Bracket
38# Main Carrier
Finishes available
Every coating system offered on strip ceiling is available on this profile, plain or perforated.
Product video
Product information
video
An introduction to c85-shaped strip ceiling, covering panel sizes, typical applications and how the system is installed.
Alternatives
Other
strip profiles
Closest first: profiles that are also open, with gap.
Open, with gap
H-Shaped
Open backed with a customizable gap from one inch up. The profile the client rates at NRC 0.6, and the one to look at when the plenum is meant to be part of the acoustic design.
- Width
- 4, 6, 8, 10, 12″
- Gap
- Customized Gap (from 1in)
Open, with gap
V-Shaped
The deepest of the narrow boards at 1.2 inches, on a 0.6 inch gap. Depth plus a tight gap gives a strongly directional ceiling that closes up as you move off axis.
- Width
- 3.3″
- Gap
- 0.6
Open, with gap
Blade
A four inch gap between wide blades. The most open profile in the range, and the point at which a strip ceiling starts to behave like a baffle.
- Width
- 5, 5.3, 6″
- Gap
- 4
Closed, no gap
C-Shaped
The workhorse closed profile. Panels butt together into an unbroken linear plane, in square edge for a crisp joint or beveled for a fine shadow line between boards.
- Width
- 1x0.6, 2x0.6″
- Gap
- No Gap
